| De standaard uitvoering van de Dolphin wordt door een aantal duikers gebruikt om een CCR rebreather te maken. Hierbij wordt het 'constant mass flow' principe losgelaten en wordt automatisch of manueel zuurstof in de ademkring gebracht. Er is hier sprake van een experimentele uitvoering van de rebreather en wordt uitsluitend op persoonlijke verantwoording van de duiker uitgevoerd. |
|
|||||||
| There are quite a few Dolphin divers who convert there set to a closed circuit rebreather. Most of them use the KISS principle from Gordon Smith. Here you find pictures on owners changed there rebreather with links to there email address or homepages. If you own a upgraded unit and would like to contribute to this page, please feel welcome to sent pictures or stories! | ||||||||
|
(; 1947-la Spirotechnique-Aqualung-Dräger SCR- Aqualung ;) |
||||||||
|
|
|
|
|
|
||||
|
|
|
|
|
|||||
|
|
|
|
|
|
||||

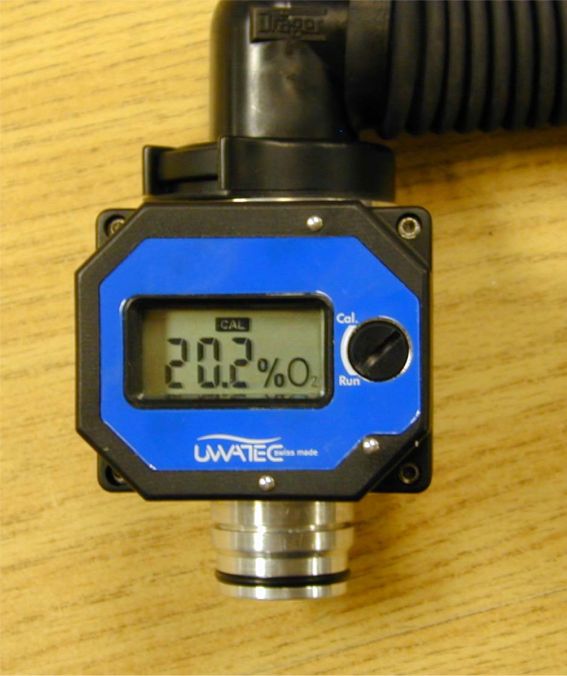

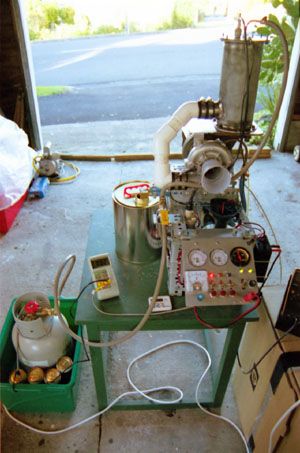

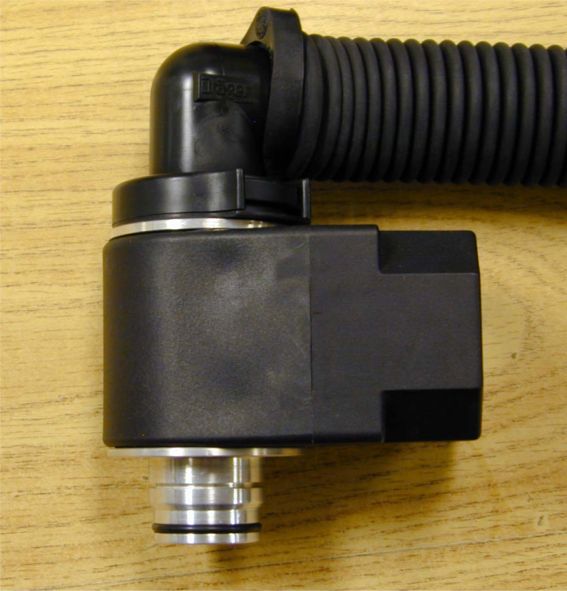

| Jet Powered Beer Cooler !! | Oxy-2 Mod. for Ray Sent by John Youngquist |
Oxygenmonitor |
Jean Michel in Action on his rebuilt rig ! Jean Michel Urbani |
|||||
|
|
|
|
|
|
||||
|

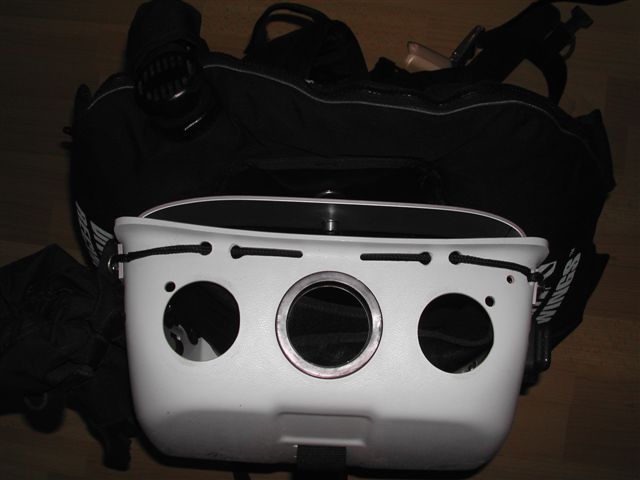

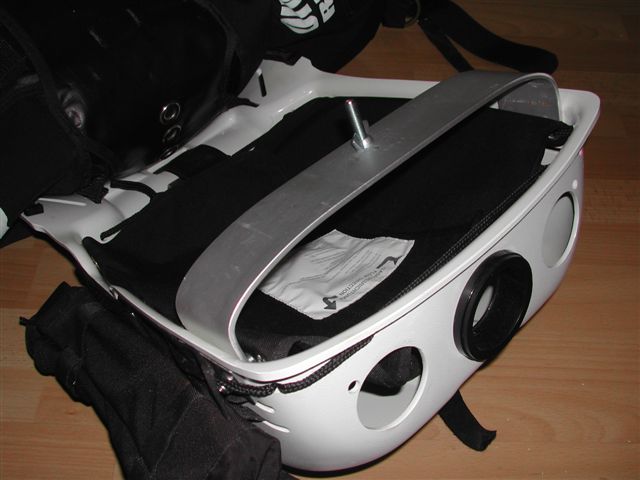

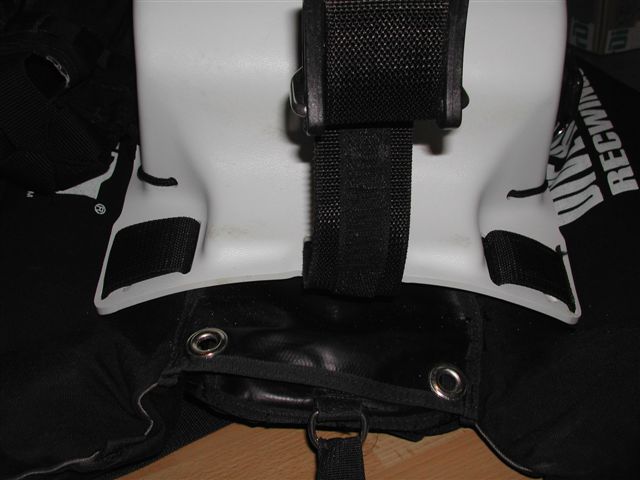

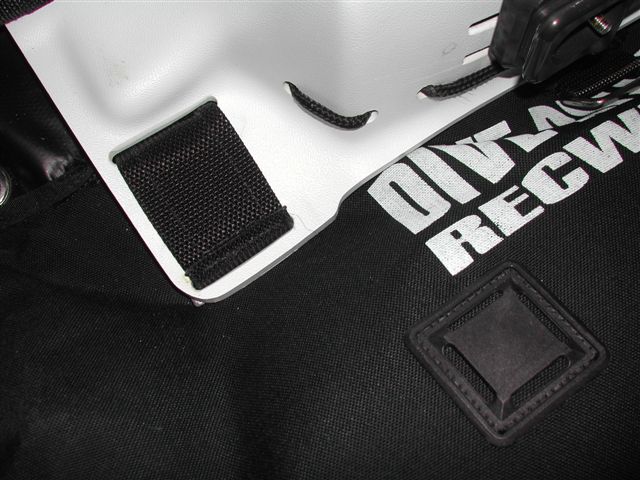

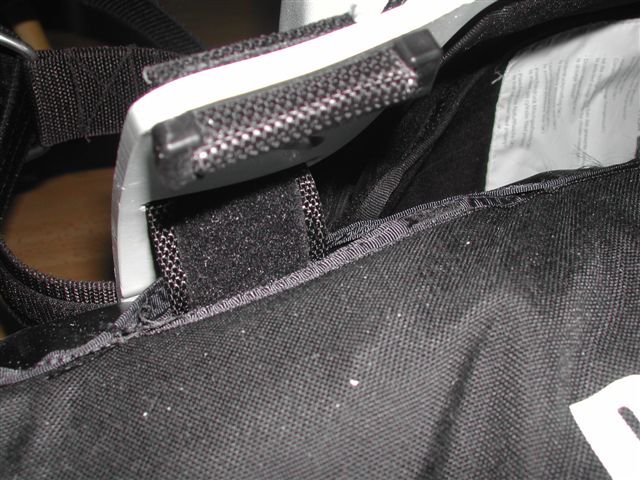

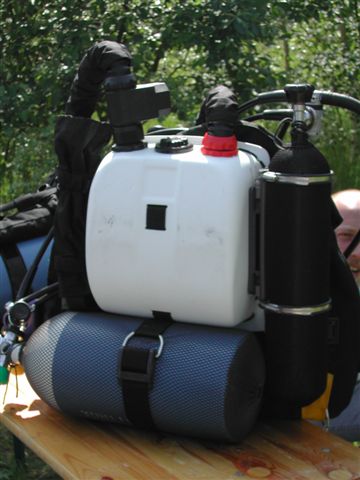

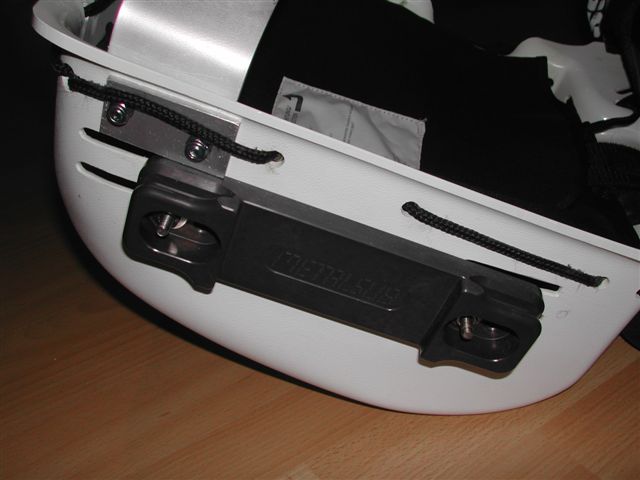

Carsten Schulz modified dolphin with DiveRite Wing |
Carsten Schulz modified dolphin with DiveRite Wing |
Carsten Schulz modified dolphin with DiveRite Wing |
||||||
|
|
|
|
|
|
||||
|
Carsten Schulz modified dolphin with DiveRite Wing |
Carsten Schulz modified dolphin with DiveRite Wing |
Carsten Schulz modified dolphin with DiveRite Wing |
Carsten Schulz modified dolphin with DiveRite Wing |
Carsten Schulz modified dolphin with DiveRite Wing |
||||
|
|
|
|
|
|
||||

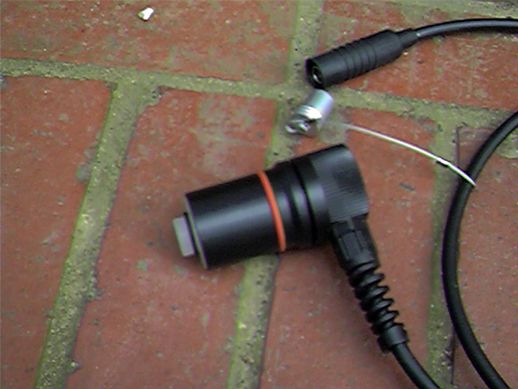

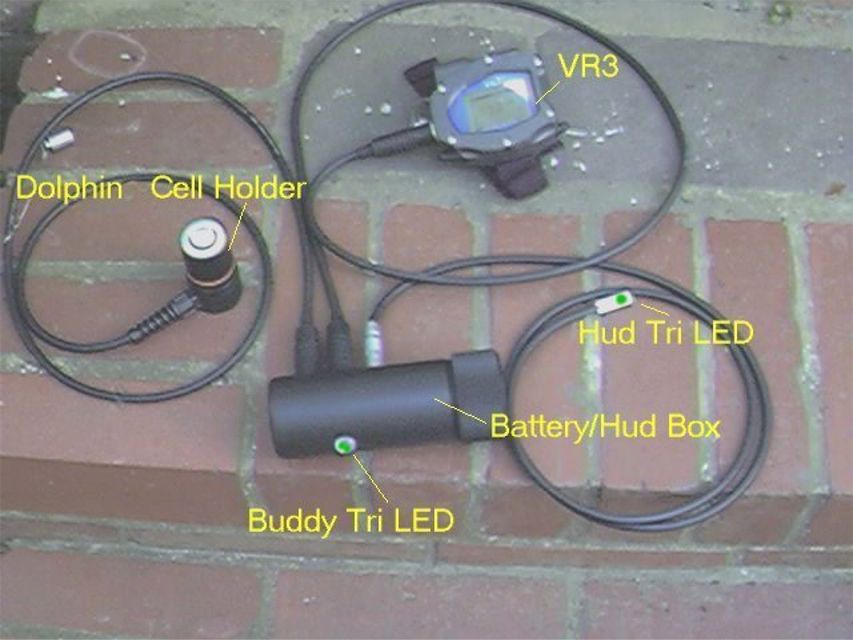

| DOLPHIN HUD, produced by Bob Howell | PPORT produced by Bob Howell |

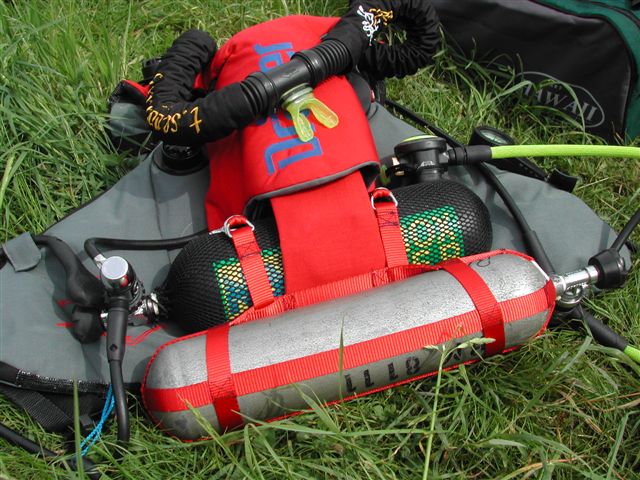

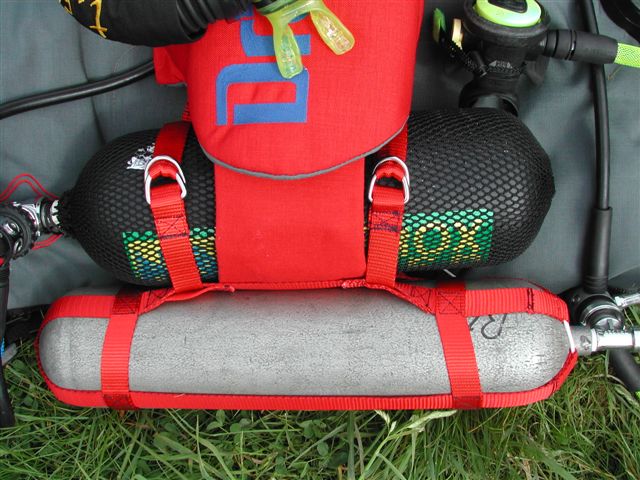

Carsten Schulz modified dolphin with 12 ltr bailout |

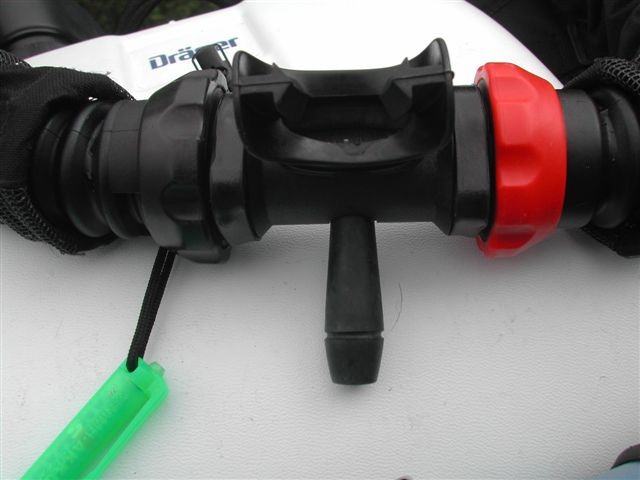

Carsten Schulz sent me this mouthpiece made by Ekki Schepanski |
Carsten Schulz sent this picture on a rig at the KREIDESEE, ray | ||||
|
|
|
|
 |
 |
||||

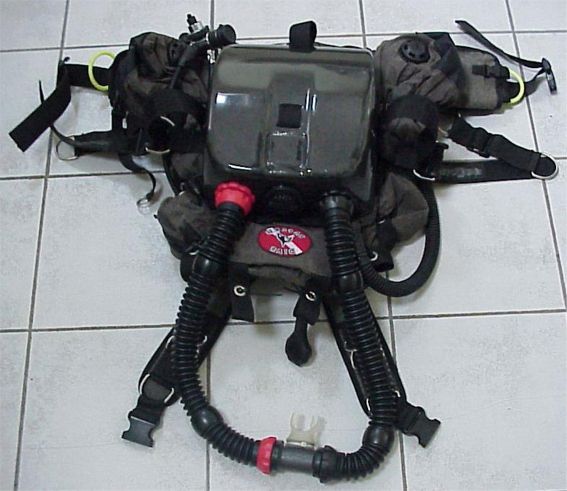

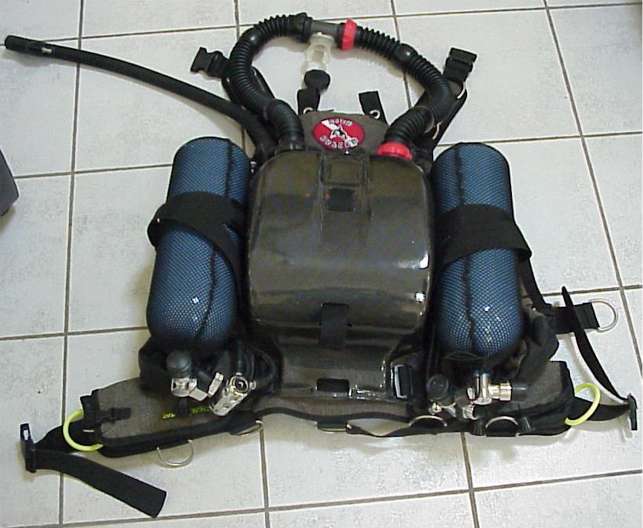

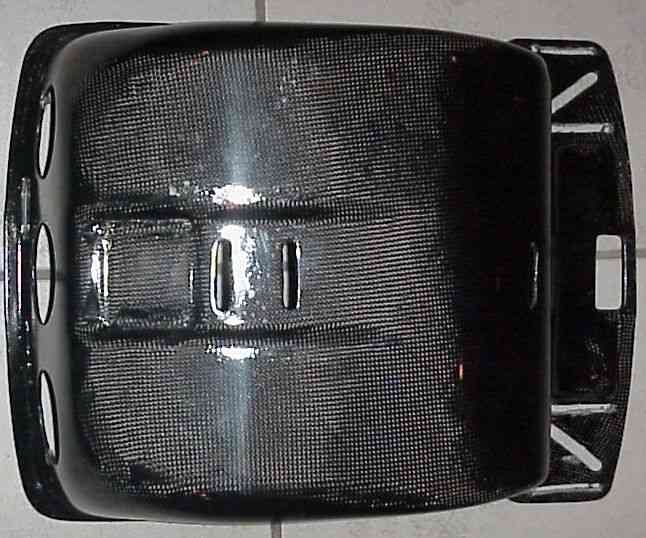

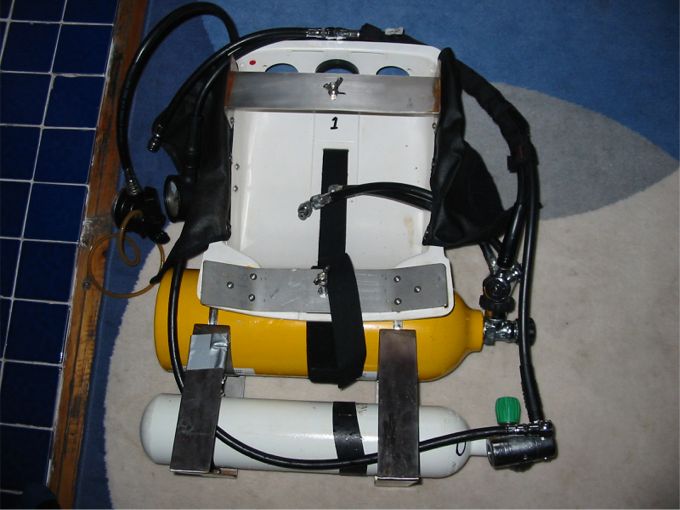

| Carsten Schulz sent this picture on a ray with extra bottle for future trimix configuration | Mark Burgers double gasunit (4 mixes) with carbonfiber housing and double bladder | Mark Burgers double gasunit (4 mixes) with carbonfiber housing and double bladder | Mark Burgers double gasunit (4 mixes) with carbonfiber housing and double bladder | Chris Davy sent these modification pictures on his Dolphin | ||||
 |
 |
 |
 |
 |
||||
| Chris Davy sent these modification pictures on his Dolphin | Expedition Sensor Cap / Flow
Restrictor sent by Patrick Duffy |
Expedition Sensor Cap / Flow
Restrictor sent by Patrick Duffy |

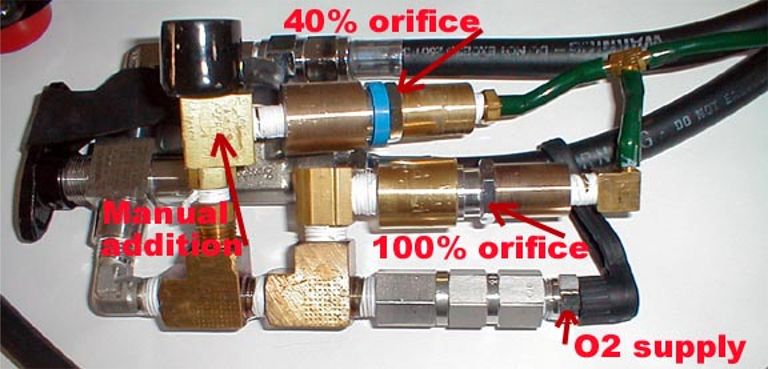

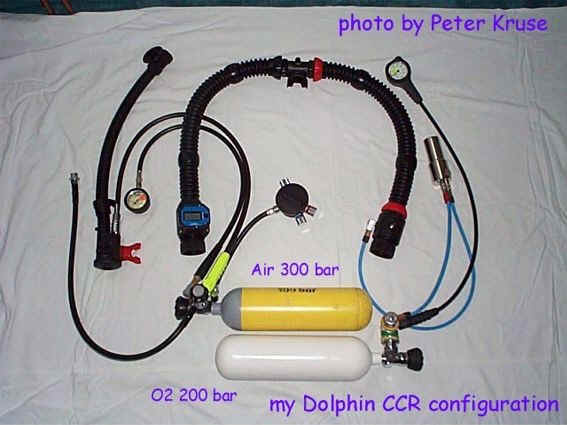

Peter Kruse added two composite bottles, a Kiss injector and modified his webbing | Dale Bletso's 5th
generation Dolphin Here |
||||
|
|
 |
 |
 |
 |
||||
| Bob Howell's
OC-DSV for the Dolphin. Special construction look here |

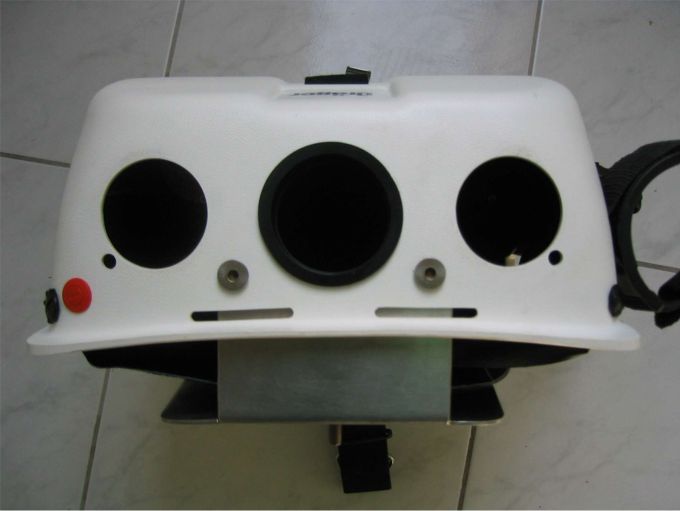

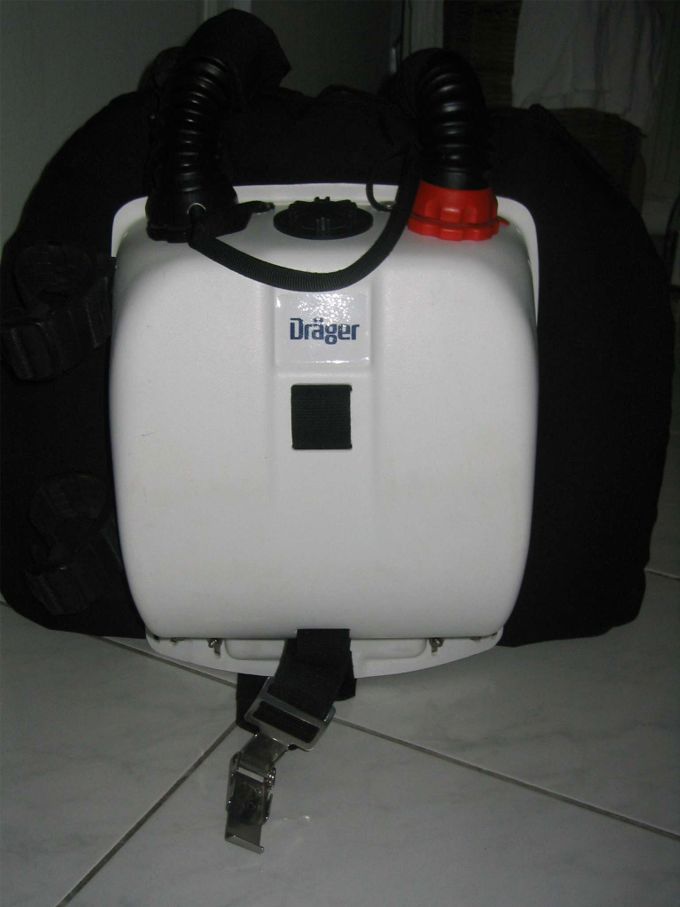

These nice pictures are sent to me by Alexander Berger. The Part are made by Thomas Schmitt. | These nice pictures are sent to me by Alexander Berger. The Part are made by Thomas Schmitt. | These nice pictures are sent to me by Alexander Berger. The Part are made by Thomas Schmitt. | These nice pictures are sent to me by Alexander Berger. The Part are made by Thomas Schmitt. | ||||
 |
 |
 |
 |
 |
||||
| These nice pictures are sent to me by Alexander Berger. The Part are made by Thomas Schmitt. | These nice pictures are sent to me by Alexander Berger. The Part are made by Thomas Schmitt. | Adapter to equalize the hose length on exhale side for Dolphin when using an OXY2, sent by Martin |
Adapter to fit any LP hose to the Dolphin Dosage (rubies), sent by Martin |
Read on Ron's homepage how he built his Dolphin CCR you will find it here | ||||
|
|
|
|
|
|
||||

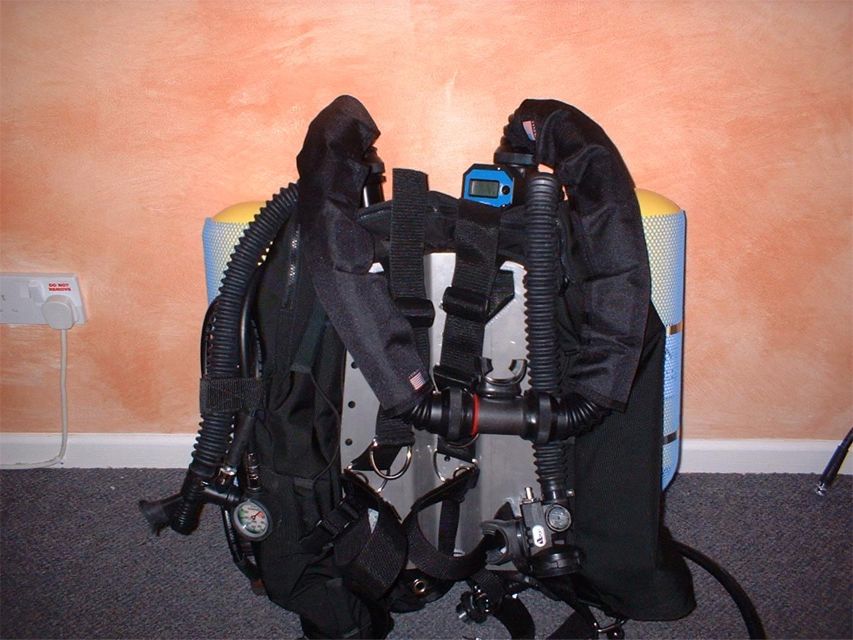

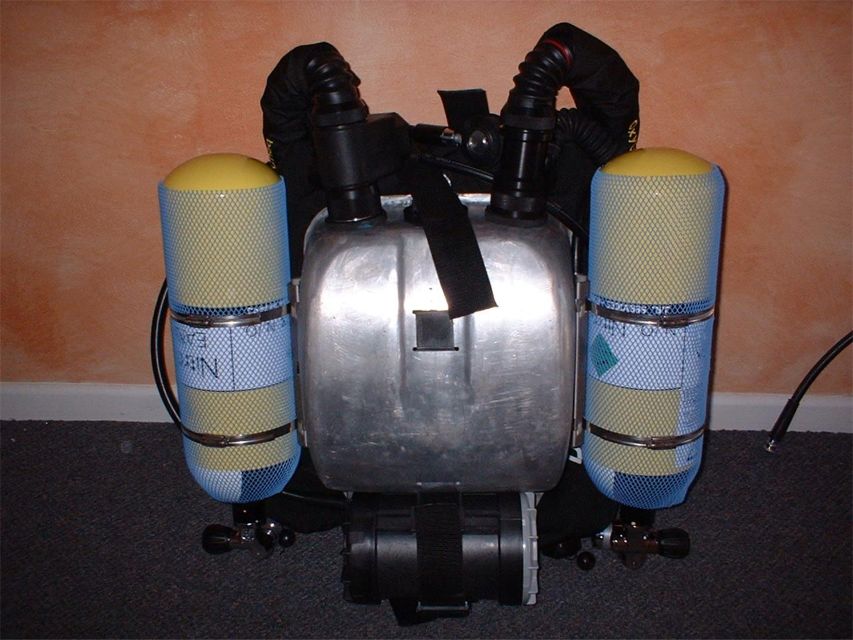

| Atlantis (!) sent by
Richard J.Bridge Please check: www.divemonsters.org.uk |
Atlantis (!) sent by
Richard J.Bridge Please check: www.divemonsters.org.uk |

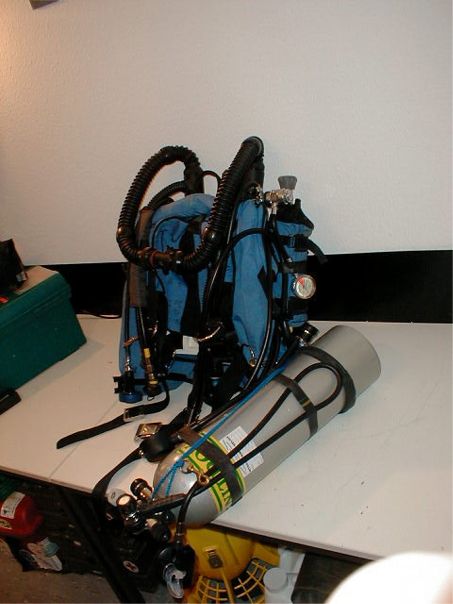

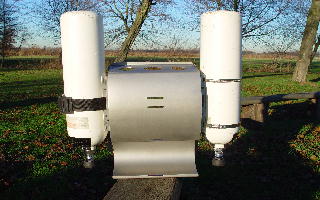

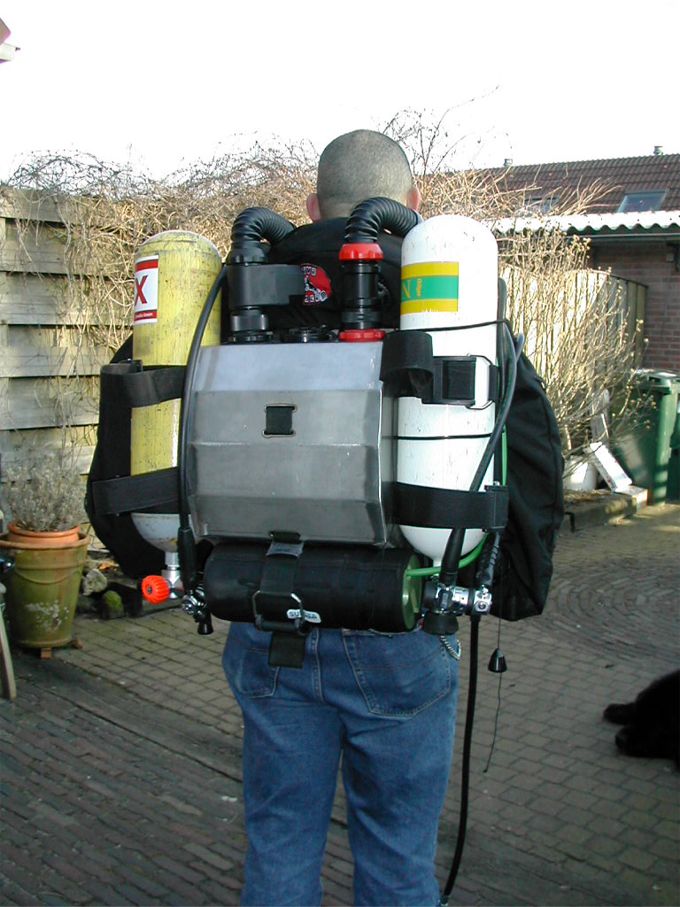

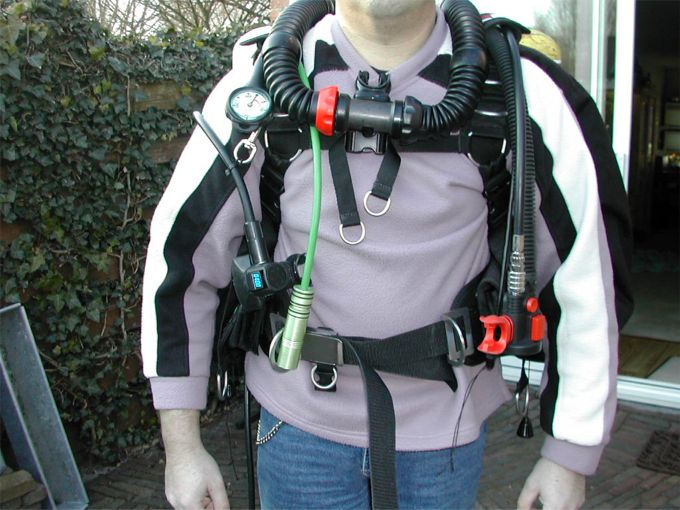

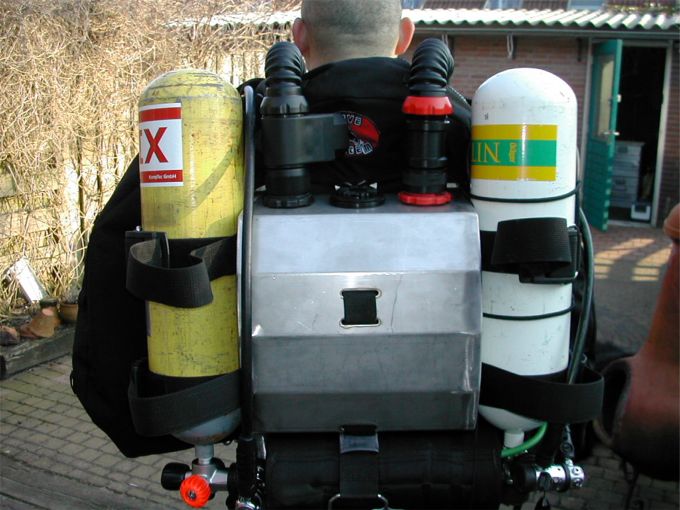

Rainer Degner sent me this nice Dolphin configuration. | Rainer Degner sent me this nice Dolphin configuration. Look at the dual injektorunit! | Modified Dolphin. Sent by Roel Suk Netherlands. | ||||
|
|
|
 |
|
|
||||

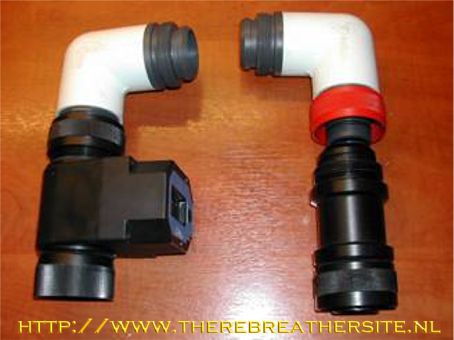

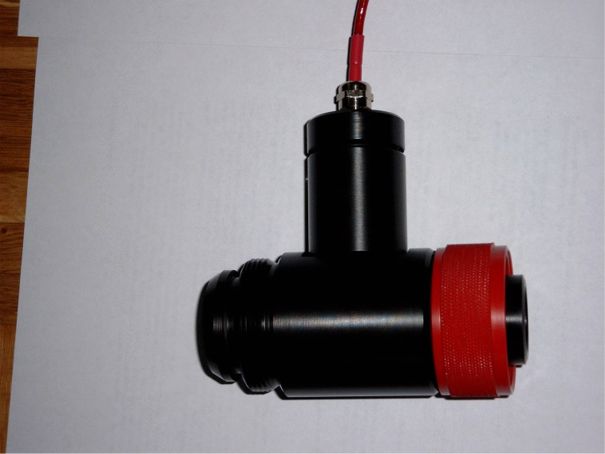

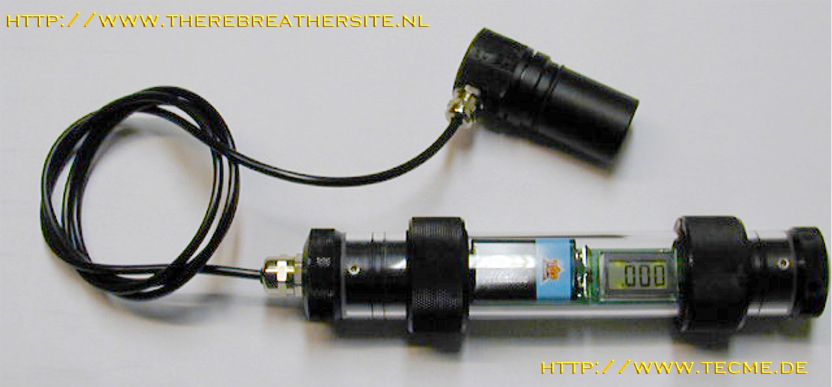

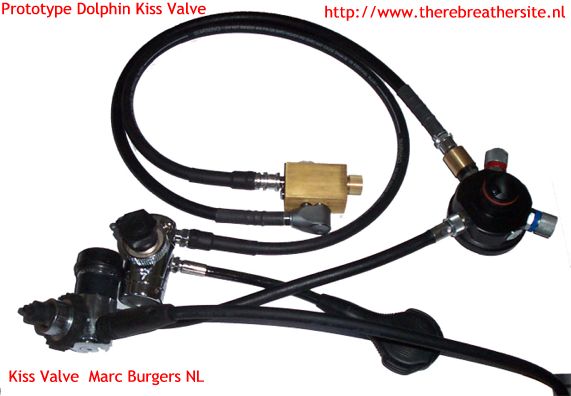

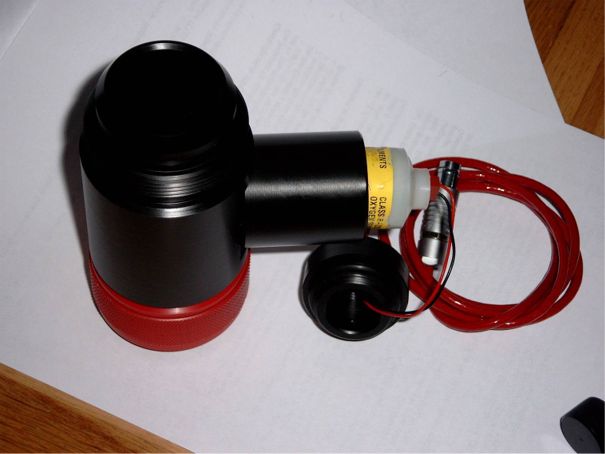

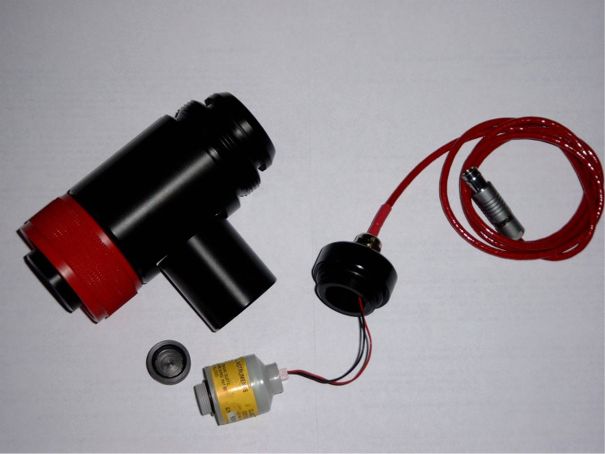

| Modified Dolphin. Sent by Roel Suk Netherlands. | Modified Dolphin. Sent by Roel Suk Netherlands. | Prototype Kiss Valve made by Marc Burgers Netherlands. Definitive version in stainless steel. More info here | Attach your HS Explorer to the Dolphin. Red should be green and is on the inhale side. Send by Stellina Diving | Attach your HS Explorer to the Dolphin. Red should be green and is on the inhale side. Send by Stellina Diving | ||||
|
|
|
 |
|
|
||||

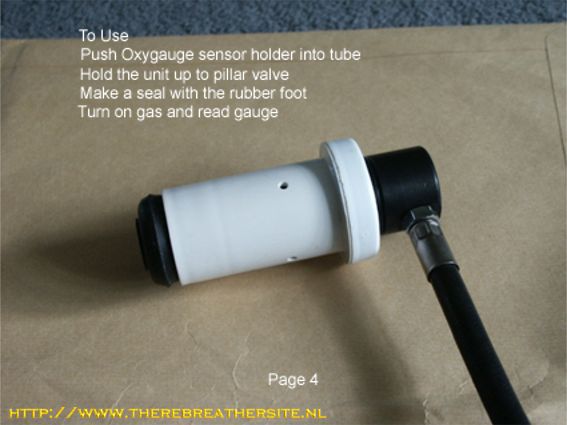

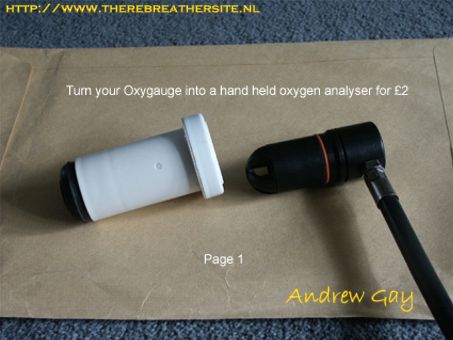

| Attach your HS Explorer to the Dolphin. Red should be green and is on the inhale side. Send by Stellina Diving | Andrew Gay sent me pictures how to
use your Oxygauge as handheld analyser Thanks Andrew |
Andrew Gay sent me pictures how to use your Oxygauge as handheld analyser Thanks Andrew |
Andrew Gay sent me pictures how to use your
Oxygauge as handheld analyser Thanks Andrew |

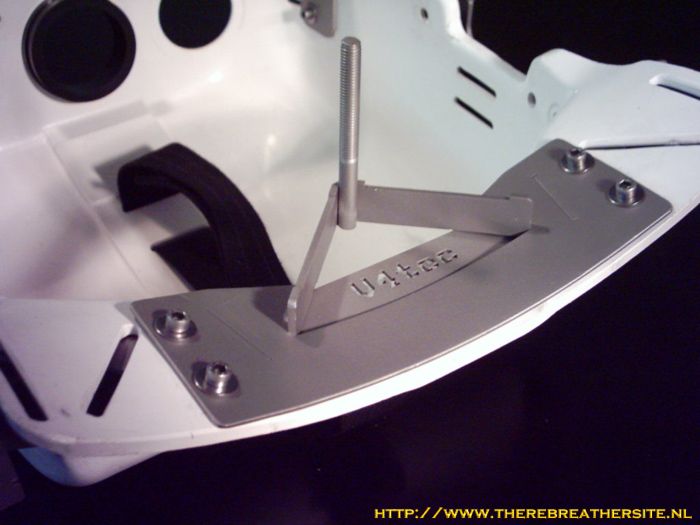

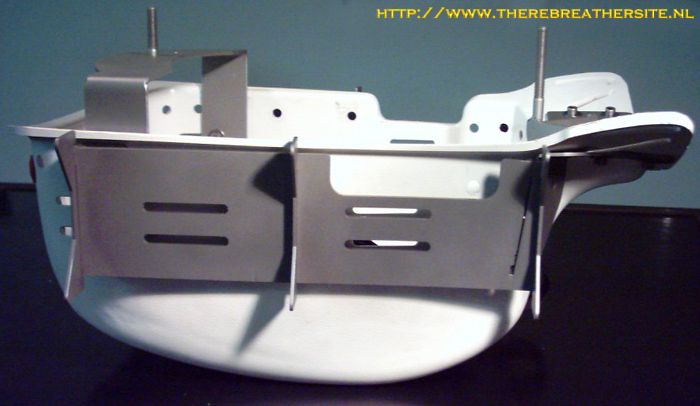

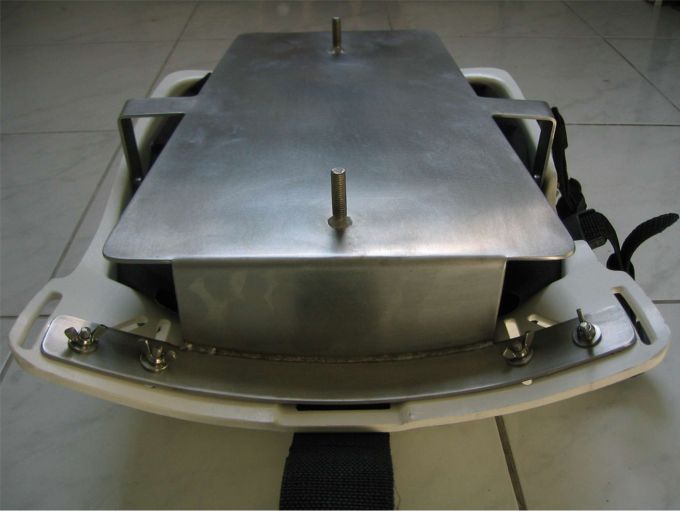

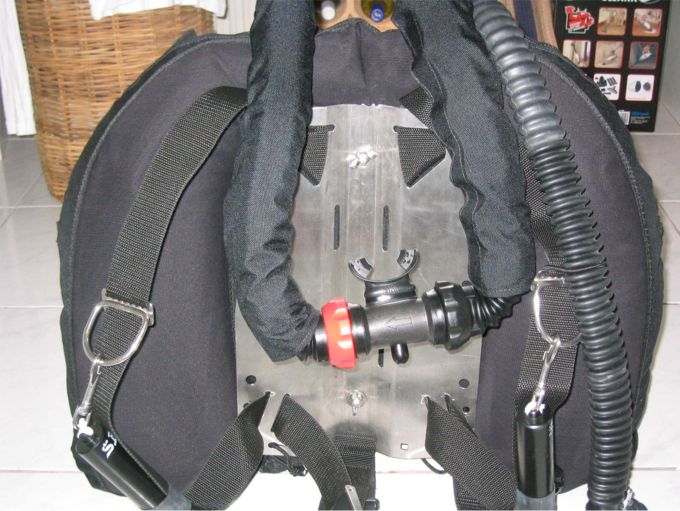

Check out this beauty Alexander Berger tipped me that this Dolphin backplate adaptor can be found here: www.v4tec.de |
||||
|
|
|
|
 |
|
||||
| Check out this beauty Alexander Berger tipped me that this Dolphin backplate adaptor can be found here: www.v4tec.de |
Check out this beauty Alexander Berger tipped me that this Dolphin backplate adaptor can be found here: www.v4tec.de |
Check out this beauty Alexander Berger tipped me that this Dolphin backplate adaptor can be found here: www.v4tec.de |

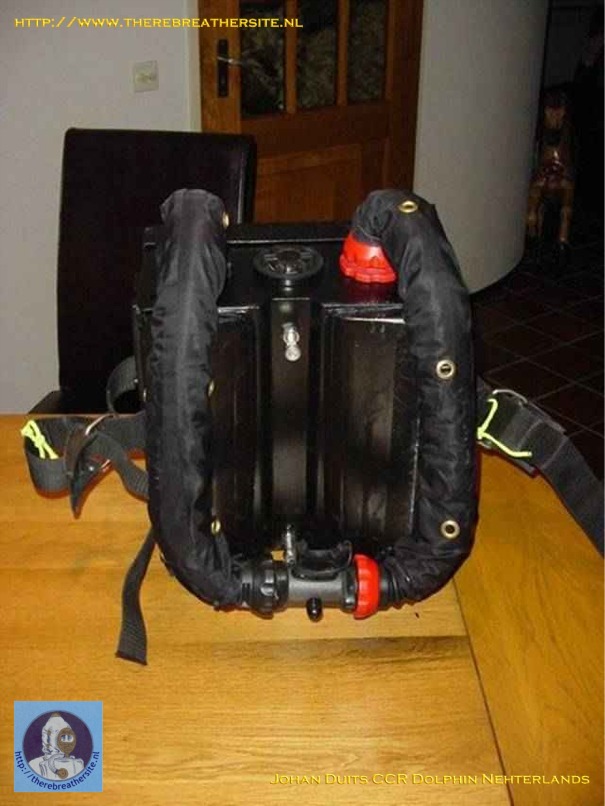

Johan Duits rebuild his standard Dolphin to a
MCCR using Gordon's mini Kiss Check this page |

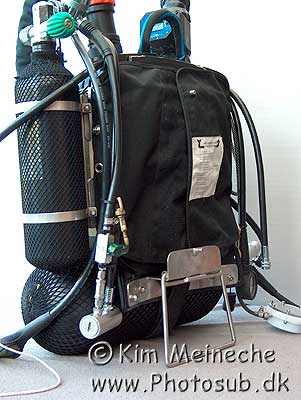

Kim Meineche did an extremely nice job on his Dolphin. Check out his webpage here | ||||
|
|
|
|
|
|
||||
| Kim Meineche did an extremely nice job on his
Dolphin. Check out his webpage here
|
Kim Meineche did an extremely nice
job on his Dolphin. Check out his webpage here
|

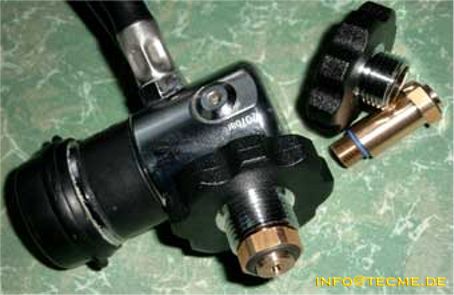

DIN fitting for Draeger first stage, so easy to travel around the world without tanks 200 and 300 bar possible, sinterfilter original Draeger filter of course. |

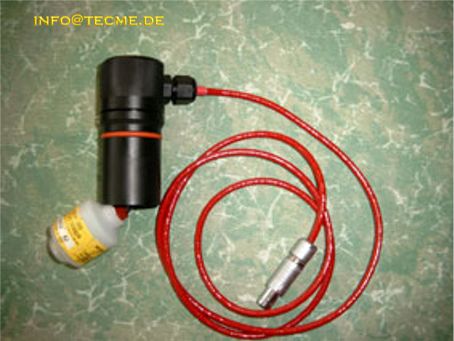

p-port
adapter for O2 cell with Explorer and VR3
|

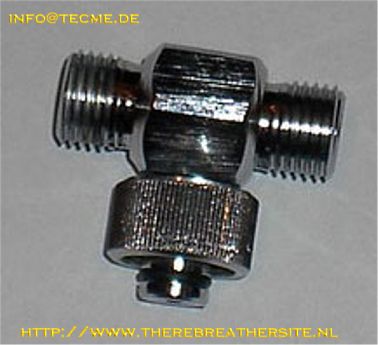

T-Adapter to connect two standard LP hoses to the bypass from Dolphin
info@tecme.de |
||||
|
|
|
|
|
|
||||
|
Adapter to fit standard LP hoses to first stage from Draeger Dolphin regulator |

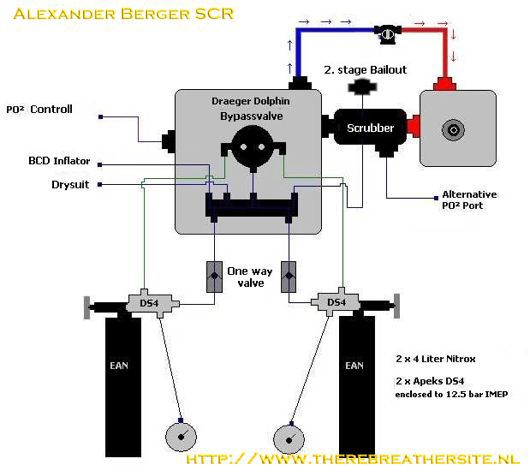

Check out Roel's MCCR in a fantastic shell | Check out Billy Hammond Conversion site! | A very nice modified SCR unit based on Dolphin parts and homebuilt parts by Alexander Berger can be found here |

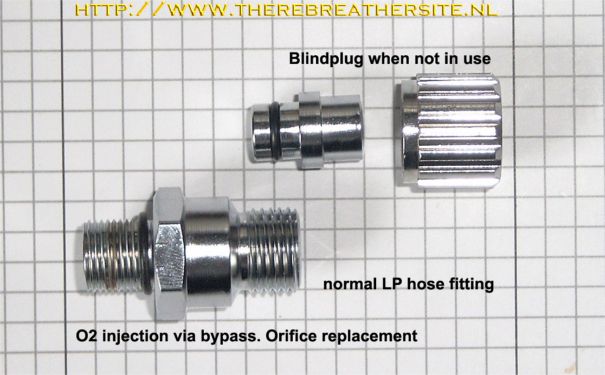

Replacement orifice/rubies fitting with a 5mm hole, outer fitting for normal LP hose to inject O2 or anything else via the bypass unit coming from KISS valve or something like that. Blindplug when not in use are the two upper parts on the pic |
||||
|
|
|
|
|
|
||||
|

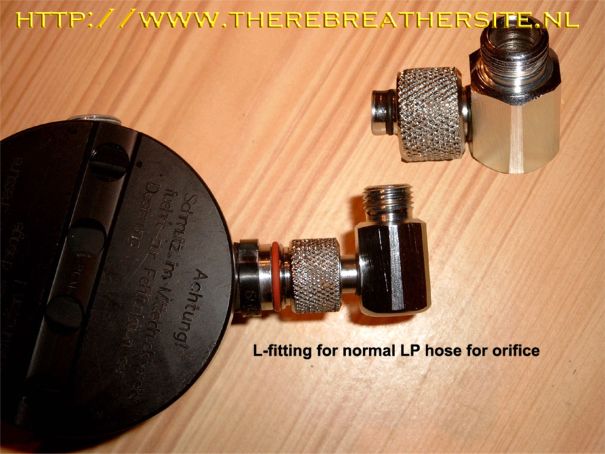

L-adapter to place normal LP hose to orifice/rubies |

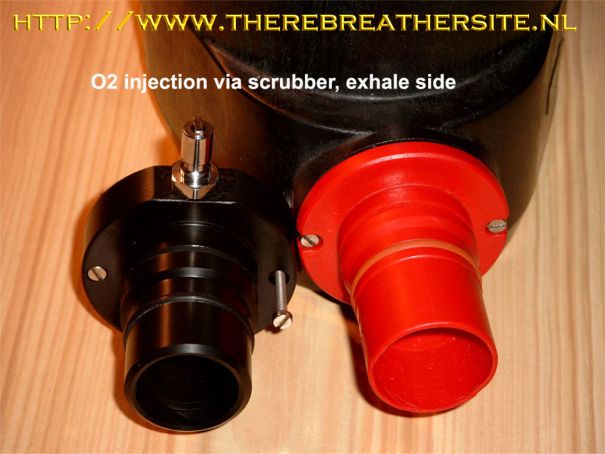

Replacement Nut for the Scrubber to have O2 injection possible via inflator connection. Threat is 3/8”, so you can plug it with normal blind plug from regulator when not in use |
90° angle
adapters
Main purpose it hose extension and better form when using OXY2 and or extension tube |
90° angle
adapters
Main purpose it hose extension and better form when using OXY2 and or extension tube |

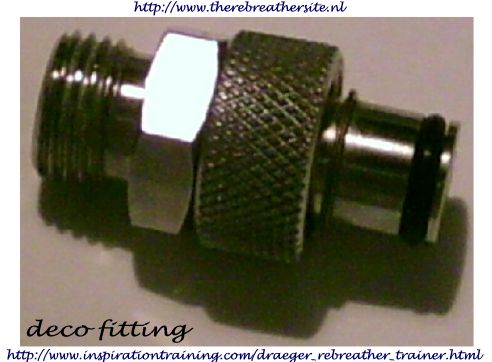

The deco fitting allows accelerated decompression. (providing you have oxygen monitoring) All you need is a small oxygen cylinder, and any oxygen clean regulator with a 2ed stage hose fitted! The right hand side of the deco fitting, fits directly into the 60% jet, and the left side fits onto a standard 2ed stage hose. WEBSITE | ||||
|
|
|
|
|
|
||||
| Jodi Mateo converted a Dolphin and a RG/UFM, his website |
Housing for Mark Munro´s ppo2 Display including switch for
ON/OFF backlight |
Check out Mark Kennedy's webpages here
|

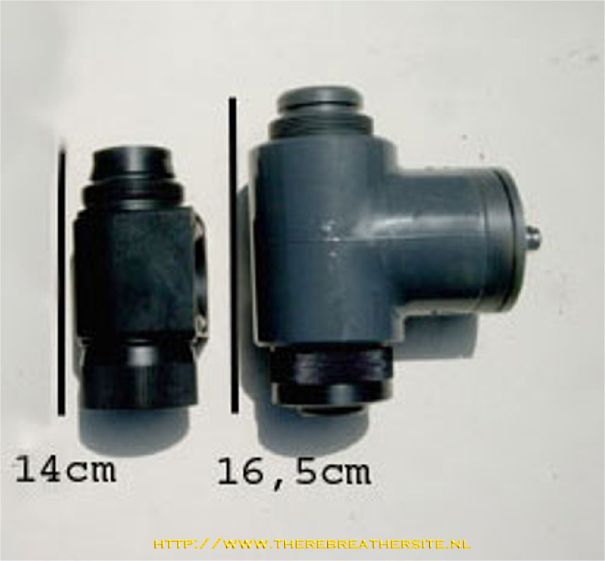

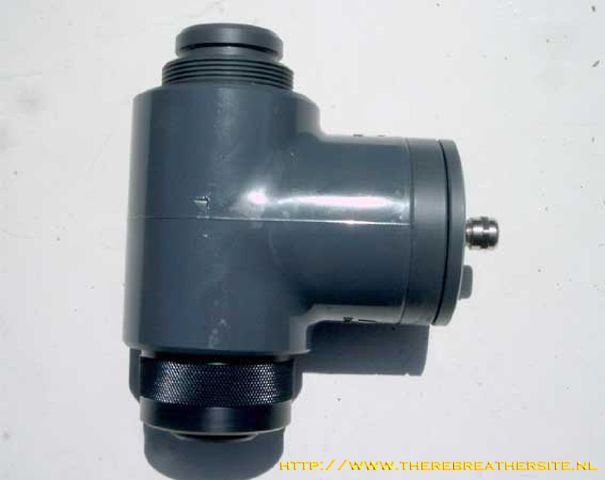

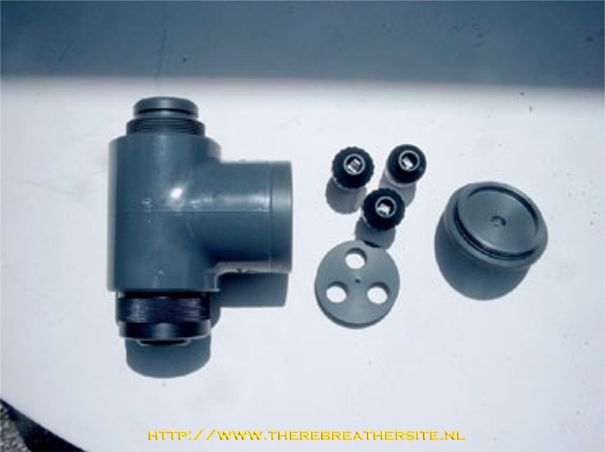

3 cell holder compact version |
3 cell holder compact version |
||||
|
|
|
|||||||
|
3 cell holder compact version |
3 cell holder compact version |
|||||||
|
||||||||
